USB Type C ATX Btx FPC FFC Lvds Header IC Socket RJ45 1394 DIN HDMI Pcie Serial ATA Wtb Btb Wtw RF D
Package Size 35.00cm * 35.00cm * 35.00cm Package Gross Weight 30.000kg USB Type C 3.1 DIP+SMT L=9.87mm connector P/N: UC;
Basic Info.
| Model NO. | UC-3008-5GNB-RR |
| Gender | Female |
| Certification | CE, SGS,RoHS,Hf |
| Application | Aerospace Projects, Industrial Projects, Railway |
| Poles | 24p |
| Pin | Phosphor Bronze |
| Housing | SUS |
| Plating | Au and Tin |
| Pitch | 1.0mm |
| Hsg | Ny6t Ny9t LCP |
| Contact | Brass |
| Transport Package | Bag, Tube, Tape Reel |
| Trademark | winconn |
| Origin | China |
| Production Capacity | 100000 |
Packaging & Delivery
Package Size 35.00cm * 35.00cm * 35.00cm Package Gross Weight 30.000kgProduct Description
| Product Description |

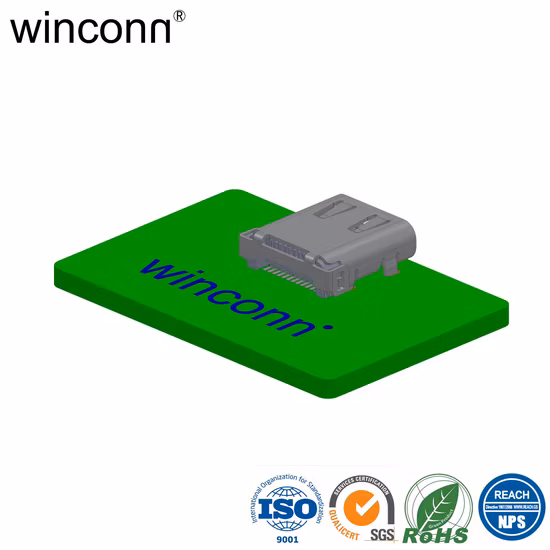

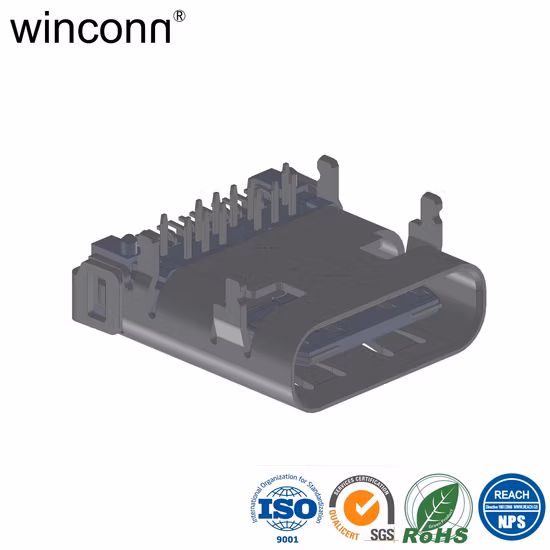

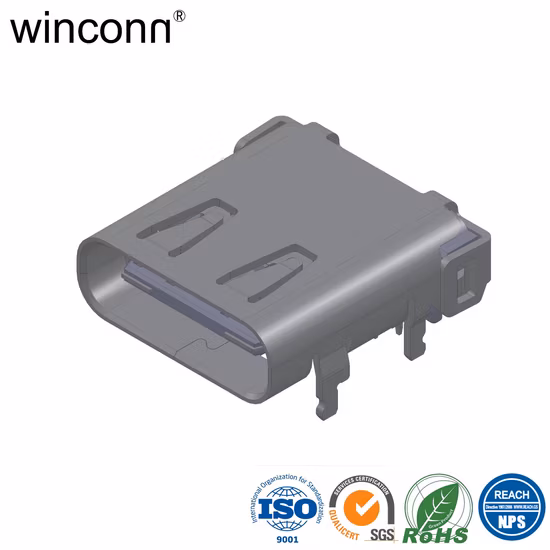

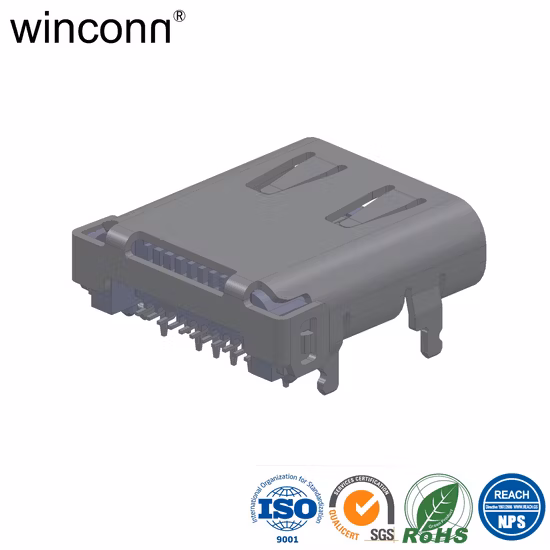

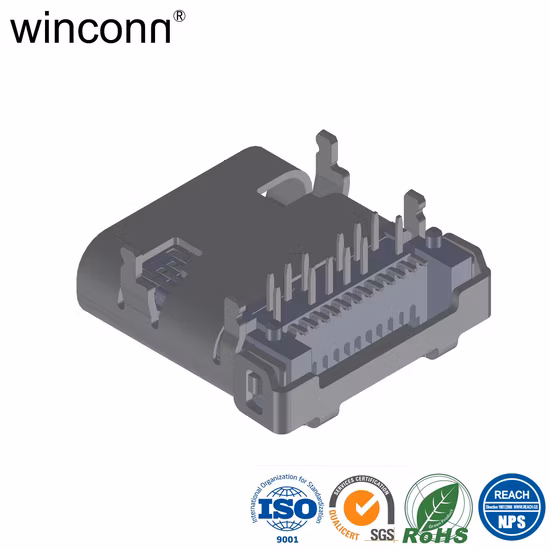

USB Type C 3.1 DIP+SMT L=9.87mm connector
P/N: UC-3008-5GNB-RR
| Product Parameters |
| 1.MATERIAL: |
| HOUSING: HIGH TEMPERATURE THERMOPLASTIC |
| CONTACT: COPPER ALLOY. |
| SHELL: SUS. |
| 2.FINISH: |
| CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail, |
| Ni(50u'' Min.) underplating overall |
| SHELL: NI PLATING. |
| 3.ELECTRICAL: |
| CONTACT RESISTANCE: 40 mΩ MAX. |
| INSULATION RESISTANCE: 100MΩ Min. |
| DIELECTRIC WITHSTANDING VOLTAGE: 100V AC |
| CURRENT RATING: 0.5A MIN FOR VBUS,0.25A MIN FOR OTHER. |
| 4.ENVIRONMENTAL: |
| OPERATING TEMPERATURE: -25°C TO +85°C |
| Company Profile |
| Core Competence |
| Quality Control |
| Packing And Shipping |
| FAQ |
| 1 Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products? |
| A: Yes,can contact us on line or send an Email to get catalogue. |
| 2. Q: I can't find the product on your catalogue, can you make this product for me? |
| A: Our catalogue shows most of our products,but not all.So just let us know what product do you need?and how many do you |
| want?If we do not have it,we can also design and make a new mould to produce?it.For your reference, making a ordinary |
| mould will take about 20-35 days. |
| 3. Q: Can you provide samples ? Are the samples free ? |
| A: Yes , we provide 5~10pcs free samples for test.But you have to pay for the shipping cost |
| 4. Q : What about your delivery time? |
| A: The stock goods delivery within 3 days, customized goods delivery within 7~35days |
| 5. Q : How to ship my order ? |
| A: For small package, send it by Express, such as DHL,FedEx,UPS,TNT,EMS. That's a Door to Door service .For big packages, |
| can send them by Air or By sea. We use standard export carton.We will be responsible to any product damage caused on delivery. |
| 6. Q: What kind of payment do you accept ? |
| A: We accept?T/T(Wire transfer), Western Union and Paypal. |
| 7 Q:How about your company quality control |
| A:Strictly obey ISO9001,IQC,OQC,IPQC,QA occupy 10% of our Quality department, CCD test is gradually being used in our |
| company |
| 8. Q: I need your price list of all your products, do you have a price list? |
| A: We do not have a price list of all of our products. Because we have so many items,and it's impossible to mark all of their price on |
| a list.And the price are always changing because of the material cost and quantity.And you can give us a list for all of the item you |
| needed,we will confirm carefully one by one,and give you specification and price list |
| 9. Q : Can you make customized products and customized packing? |
| A: Yes. We made a lot of customized products for our customer before.About customized packing, There is no problem for we put |
| your Logo or other info on the packing Just have to point out that,it will cause some additional cost, and need to MOQ. |
| Contact Us |
