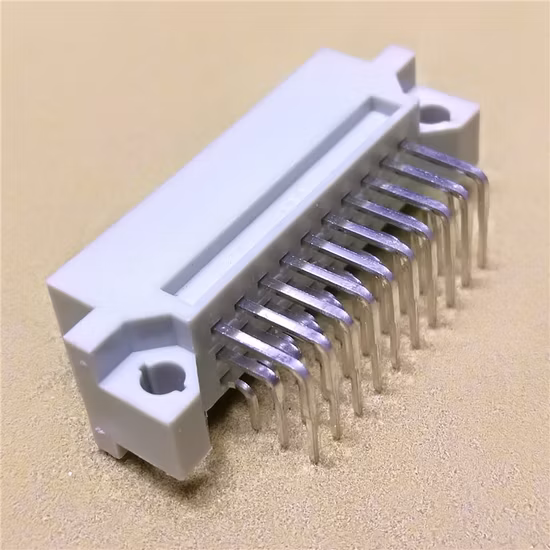

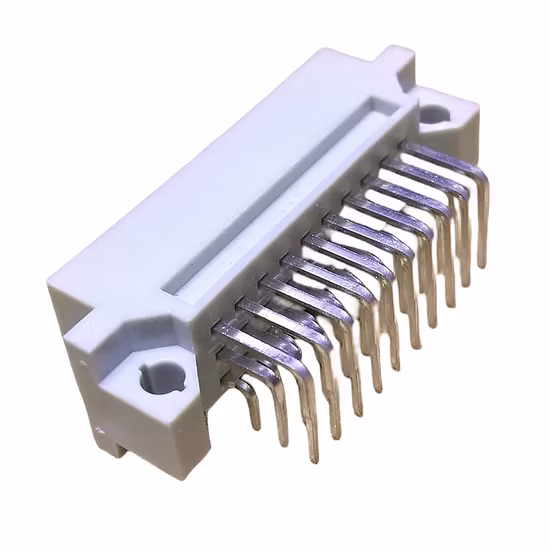

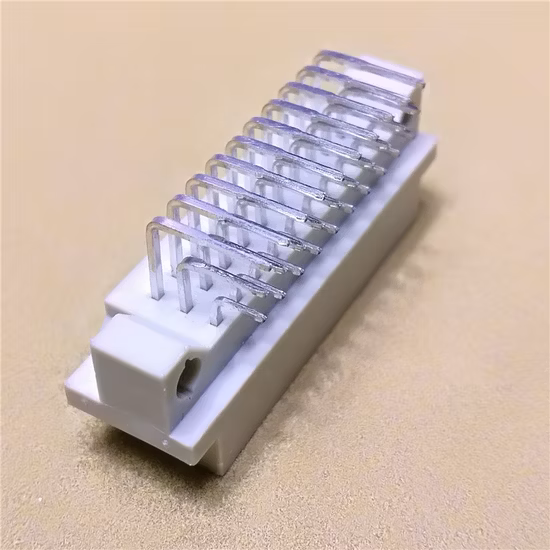

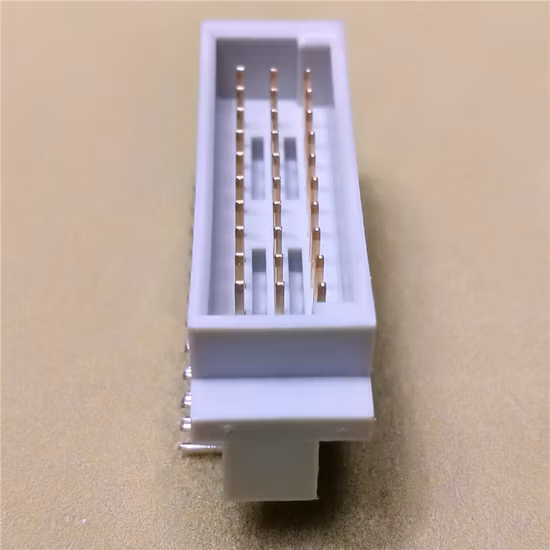

Factory Price 30contacts DIN41612 Connector, 3X10POS, Female, Right Angle

Basic Info.

Model NO.	DIN-03-10-F-R-XX
Gender	Female&Male
Housing	PBT 30% Glass Filled UL 94 V-0 Rated
Terminal Structure	Molded Terminal
Terminal Material	Copper Alloy
Transport Package	Tray Packing
Trademark	OEM
Origin	China
HS Code	8536909000
Production Capacity	100000pieces/Month

Product Description

Factory price 30Contacts DIN41612 Connector, 3X10POS, Female, Right Angle

Basic informatoin:

Temperature range	-55ºC to +125ºC
Insulator material	PBT 30% Glass filled UL 94 V-0 Rated
Contact Material	Copper Alloy
Contact plating level 1	≥500 mating cycles
Performance level 2	≥400 mating cycles
Per DIN 41612 level 3	≥50 mating cycles
Contact resistance	≤20mΩ
Insertion force(N)	20 contacts @ ≤18 48 contacts @ ≤45
	30 contacts @ ≤28 64 contacts @ ≤60
	43 contacts @ ≤30 96 contacts @ ≤90

Description:
Current rating: 3.0A AC/DC
Voltage rating: 30V AC/DC
Contact resistance: 20mΩ max
Insulation resistance: 500mΩ minute
Withstanding voltage: 800V AC/ minute
Temperature range: -40 to +105ºC
Material and finish:
Housing: high-temperature plastic (UL94V-0)
Contact: copper alloy
Plating: gold flash over 50µ"nickel-plated (contact area)100µ, tin-plated on solder tail
Important:

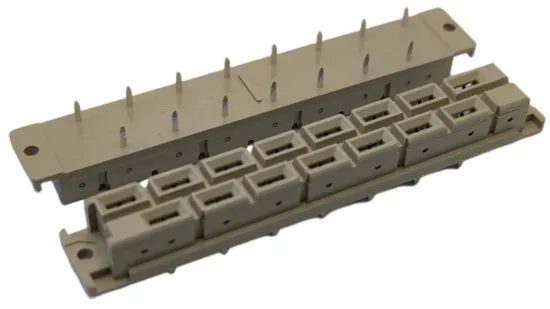

Our DIN41612 product offering includes 2, 3, 4 and 5 row products in both Male and Female versions. with 20contacts, 32contacts, 48contacts, 50contacts, 64contacts, 98contacts, 128contacts,150contacts,164contacts, many products are available that are not listed in the website. If you do not see what you want, please contact us.
Below are a part of drawing of DIN41612, if you need other type, please contact us then we will reply to you within 24hours.

....... for more DIN 41612 drawings, please contact us

~When you need nquire some product,you had better Please give a brief description or picture or datasheet. you also can contact us then we can send our datasheet to you.

~Sample order acceptable

~Trail order and Custom design acceptable.
~QC 100% control quality. all products with 12months guarantee quality.
~Packing: Standard tray packing. if special package requiremtnes acceptable.

~Shipping:
DHL, TNT, UPS, Fedex, EMS, ARAMEX, SF, other service acceptable

Delivery time:
Small order delivered within 7-12days, bulk order depending on the actual situation,ususally 10-20days.

~Payment:
A. T/T, L/C, Western Union, Paypal
B. EXW, FOB, CFR, CIF, DDU, FCA
C. ≤USD10,000 , 100% deposit ; ≥USD10,000 , 30-50% deposit

~Certificate:
ISO 9001, ISO14001, CE, ROHS
--------------------------------------------

ZYSZ INDUSTRY CO.,LTD was established in 2002 year,a professional manufacturer of electronic connector industry; also we build all tooling for mould, stamping and injection and production.

Our factory covers area of 6, 500 square meters with more than 185 staffs and strictly follow ISO 9001:2000-certified operation

Professional Team : We have a full team that strictly inspects our production process from raw materials to finished products. We have 12 R&D personnel and 18 engineers with more than average 8 year' experience in this field,some engineer work in this feild more than 25 years.
